Plant List
3 Axis

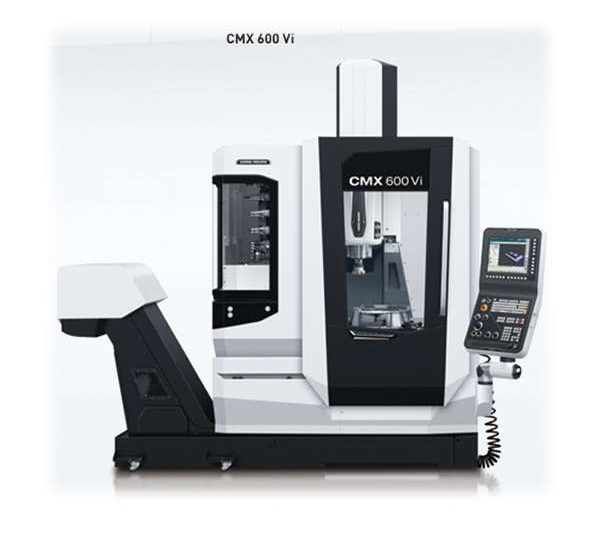

DMG CMX 600 Vi (2022)
X-Axis Travel : 600mm
Y-Axis Travel : 560mm
Z-Axis Travel : 510mm
Spindle speeds :12,000 rpm BT40
4th Axis
Mazak VC Ez 410 IP X 1 (2023)
X-Axis Travel : 1050mm
Y-Axis Travel : 510mm
Z-Axis Travel : 635mm
Spindle speeds :12,000 rpm BT40
Measurement : Renishaw probe

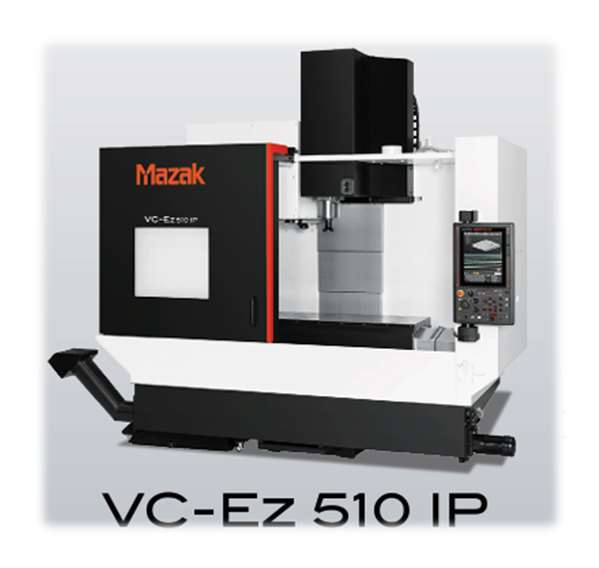

Mazak VC Ez 510 IP X 1 (2023
X-Axis Travel : 1050mm
Y-Axis Travel : 510mm
Z-Axis Travel : 635mm
4Th Axis : ø250 Kitagawa True-union type
Spindle speeds :12,000 rpm BT40
Measurement : Renishaw probe
5th Axis

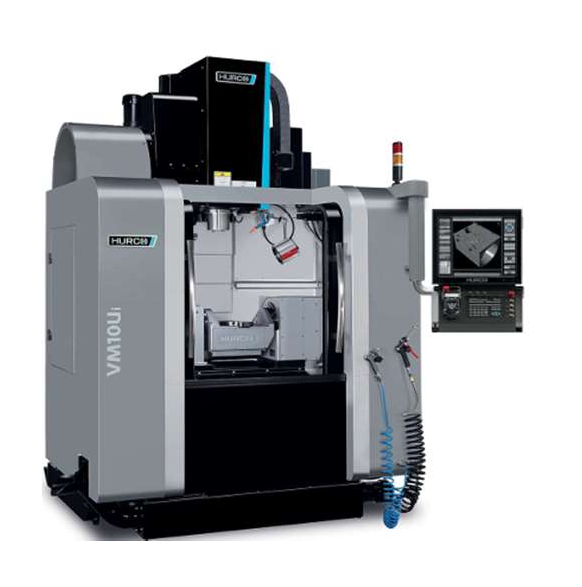

VMX10Ui
X-Axis Travel : 533mm
Y-Axis Travel : 406mm
Z-Axis Travel : 488mm
Table Dia : 200mm
Spindle speeds :10,000 rpm BT40
5th Axis

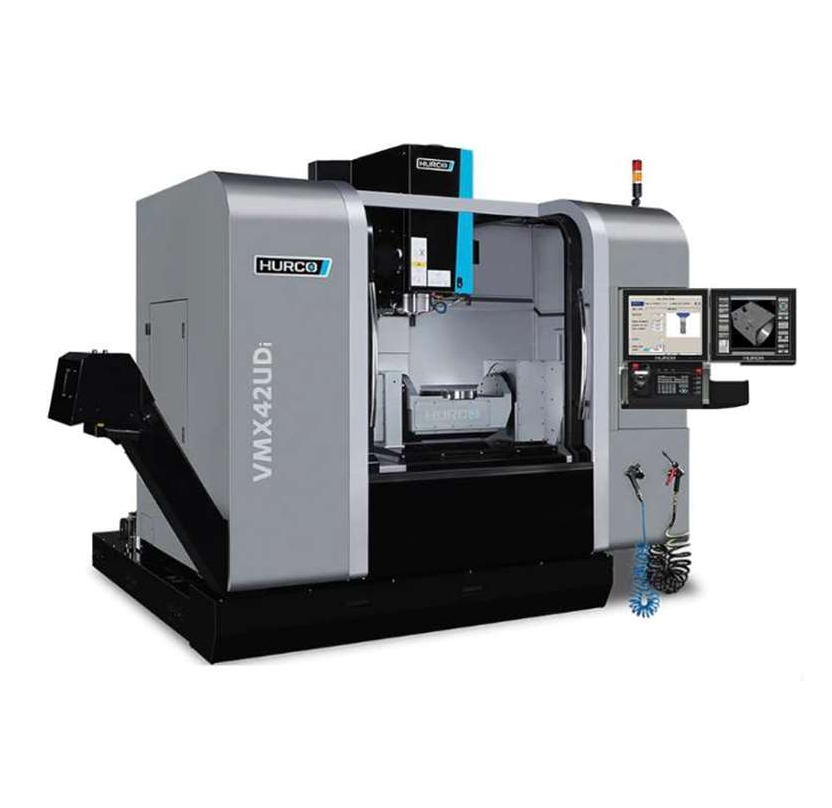

VMX42Ui
X-Axis Travel : 1,067mm
Y-Axis Travel : 610mm
Z-Axis Travel : 400mm
Table Dia : 200mm
Spindle speeds :10,000 rpm BT40
Turning

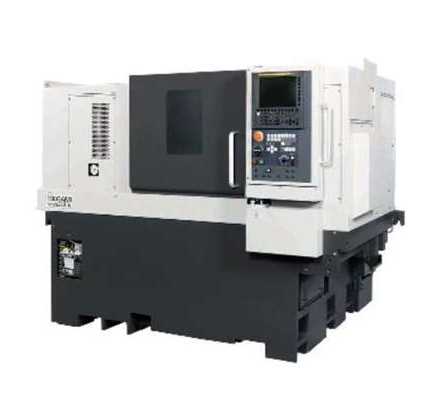

Tsugami MiO8 J-II
Max Turn Dia : 280mm
Max Length : 290mm
Spindle speeds : 4000 rpm
Equipped with tool pre-setter
Turning

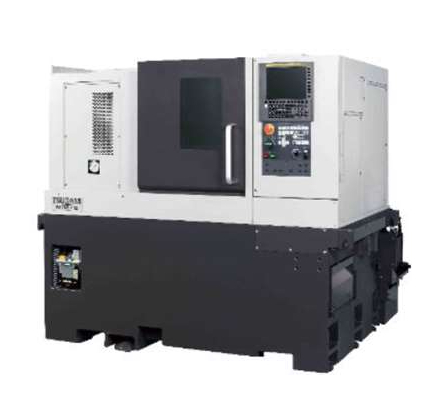

Tsugami MiO8 JL5L-II
Max Turn Dia : 350mm
Max Length : 500mm
Spindle speeds : 4000 rpm
Equipped with tool pre-setter
Material Prep
Banka Band Saw
Max Cut Dia : 280mm
Quality

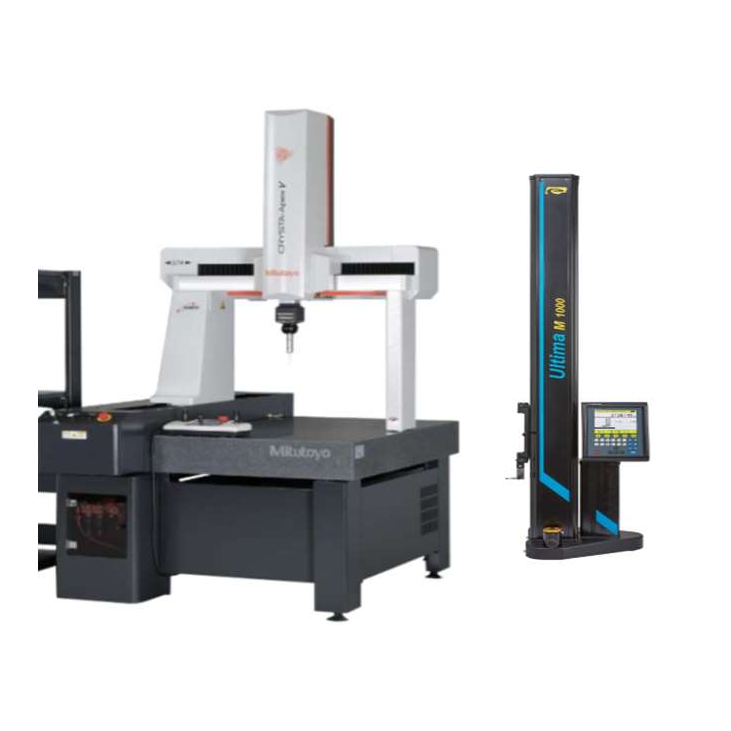

Mitutoyo Crista Apex5740 (2024)
X-Axis Travel : 500mm
Y-Axis Travel : 7o0mm
Z-Axis Travel : 400mm
Measurement : Renishaw probe
Electronica Ultima M700
Measuring range : 700 mm
Range Resolution : 0.010 / 0.005
Quality Instruments
Quality Equipment
Moore & Wright Pin Gauge Set : 6.01 To 13.00 @ 0.01 Incr.
DML DBG0608 Three-Point Digital Bore : 6-8mm
DML DBG0608 Three-Point Digital Bore : 6-10mm
Bowers SXTD4M-BT Bore Gauge Set :10-20mm
Bowers SXTD5M-BT Bore Gauge Set :20-50mm
Bowers SXTD6M-BT Bore Gauge Set :50-100mm
Mitutoyo Slip Gauge Box : 2Nos
Thread Plug Gauges, Thread Ring Gauges etc.
Vernier Callipers etc.
